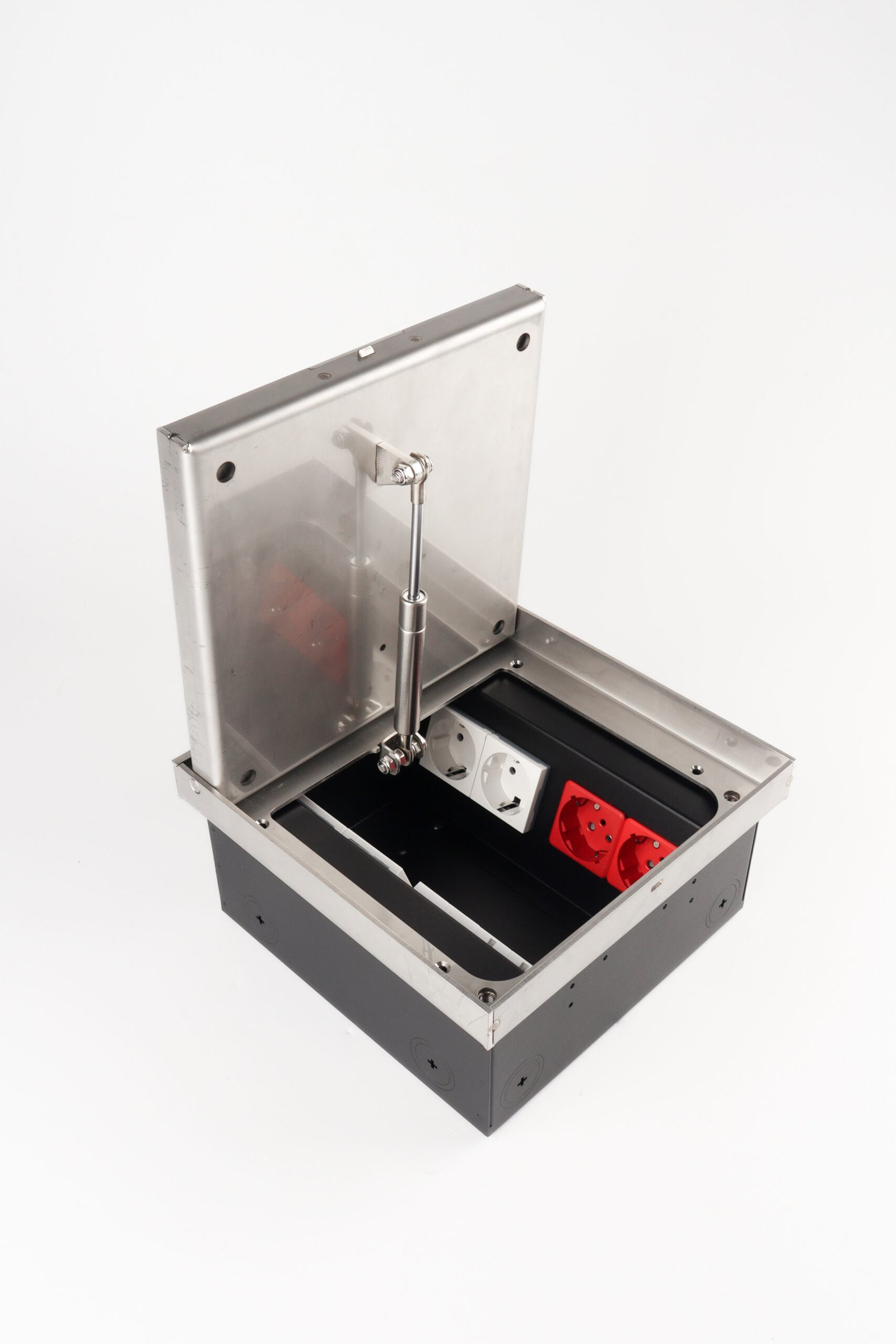

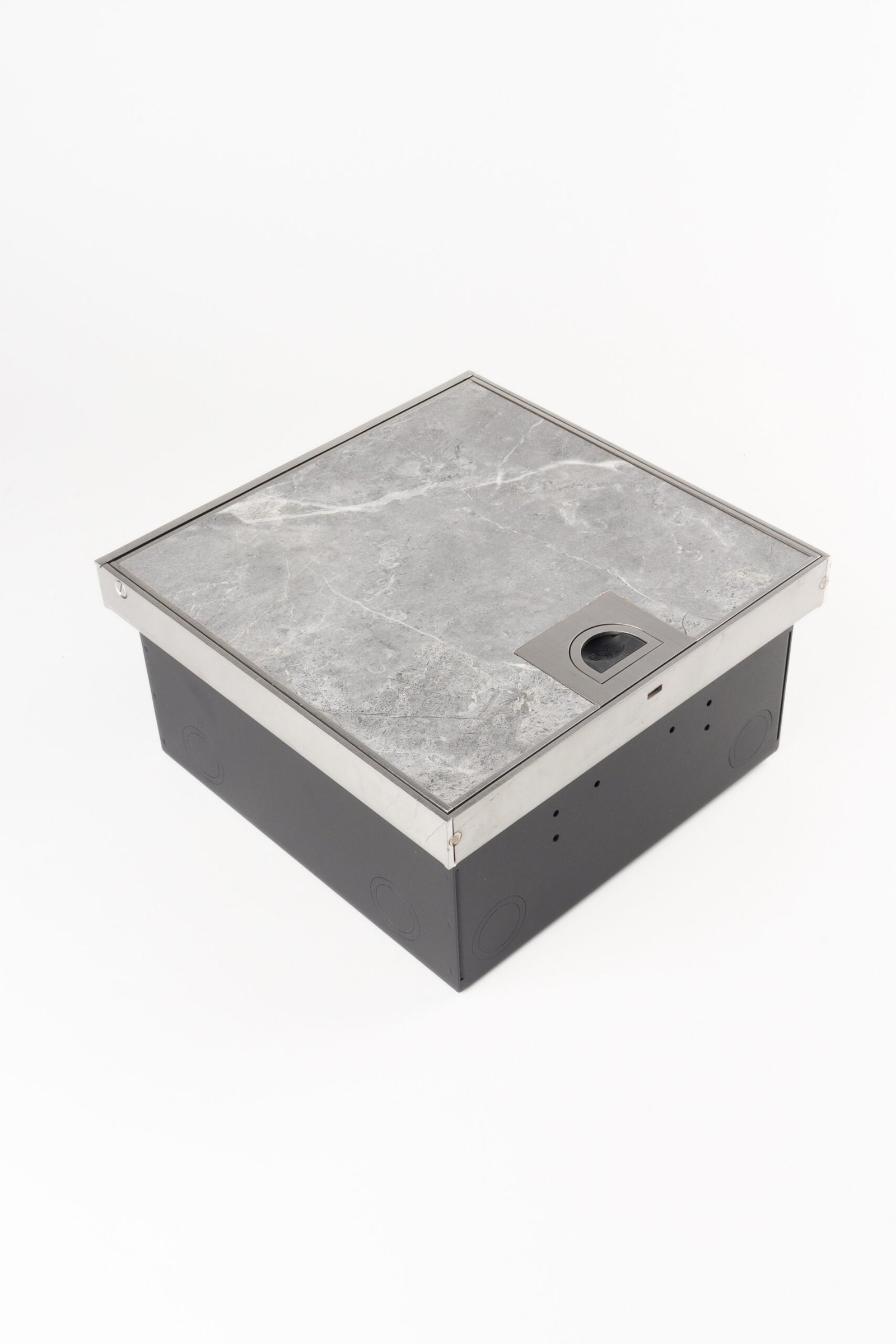

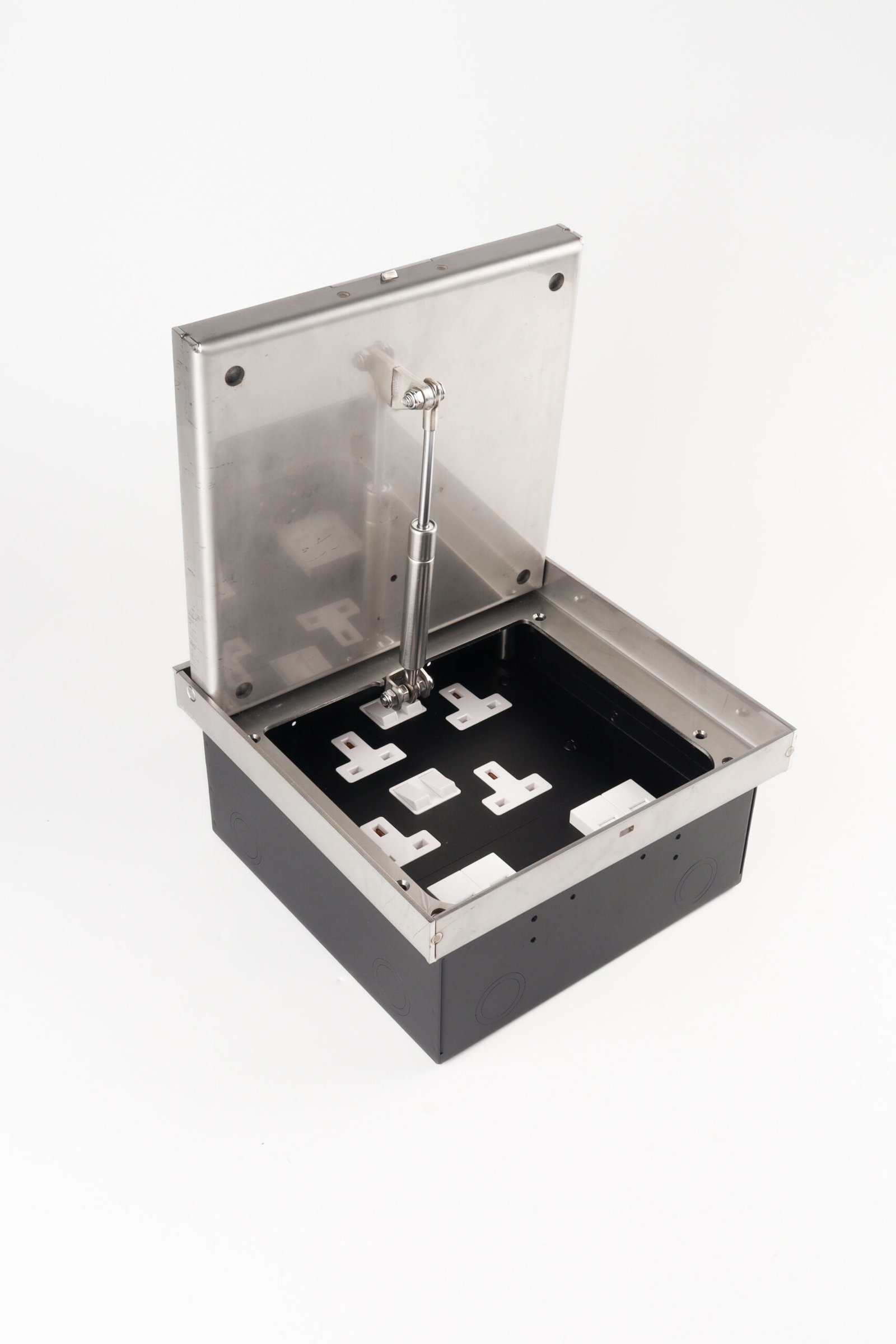

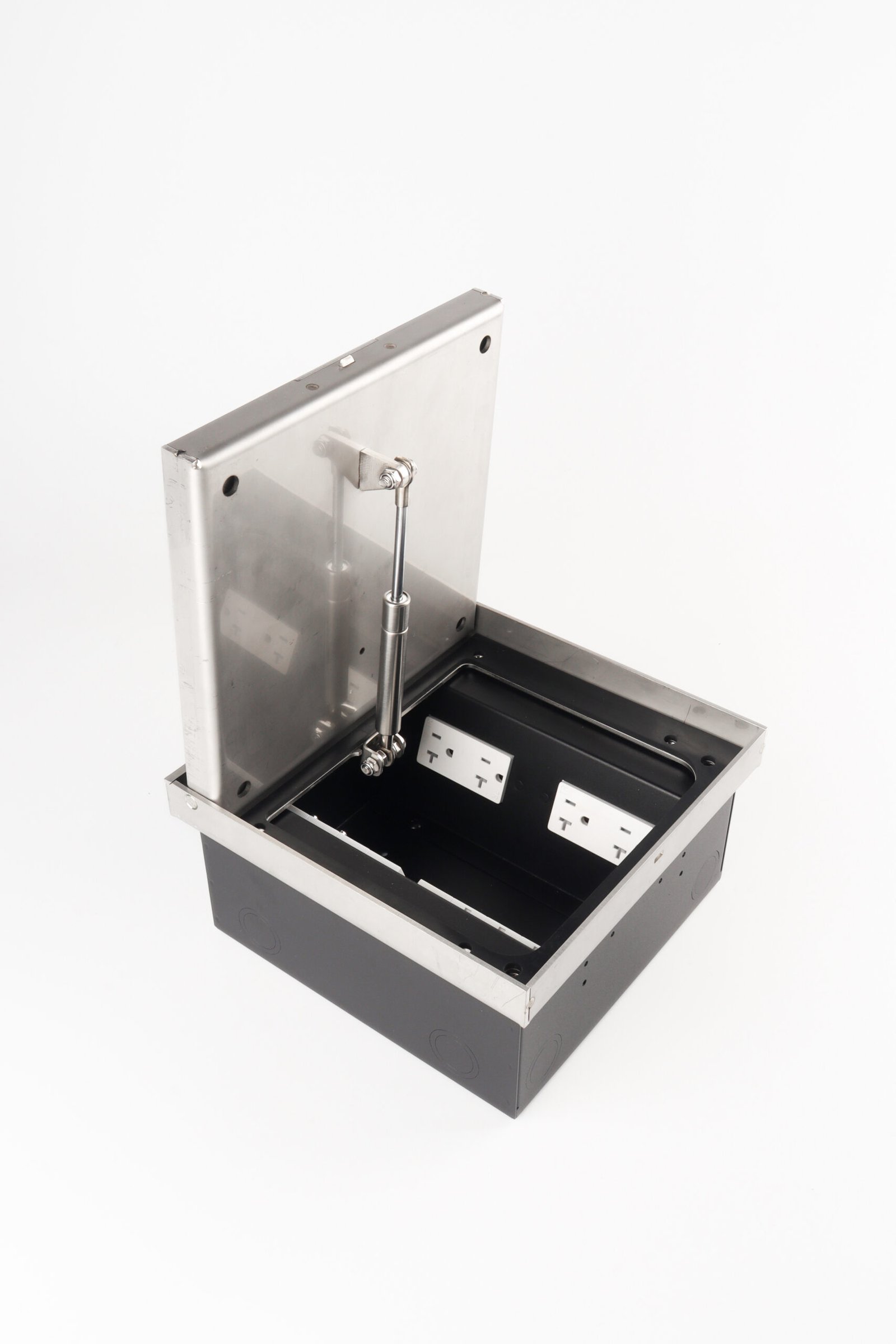

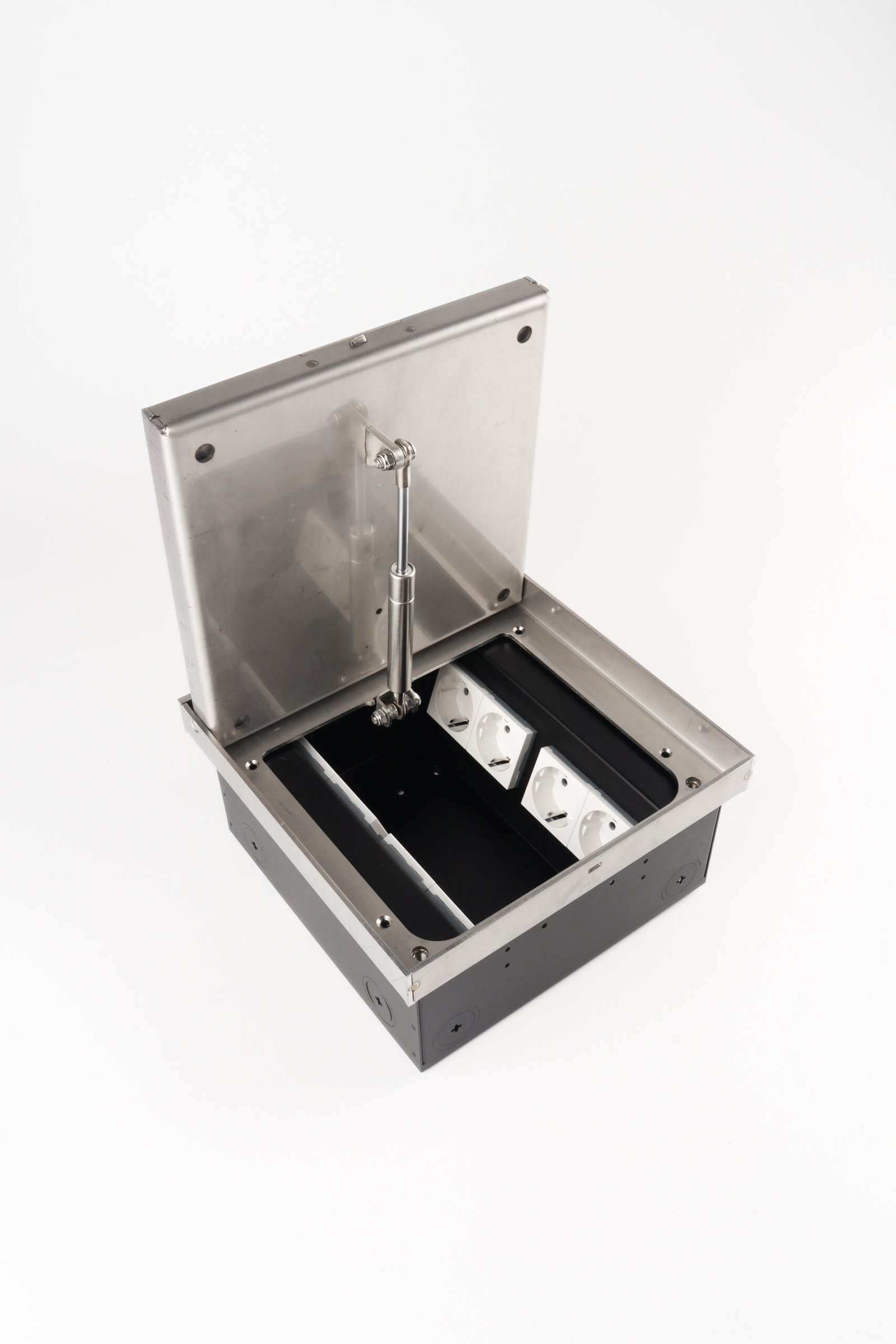

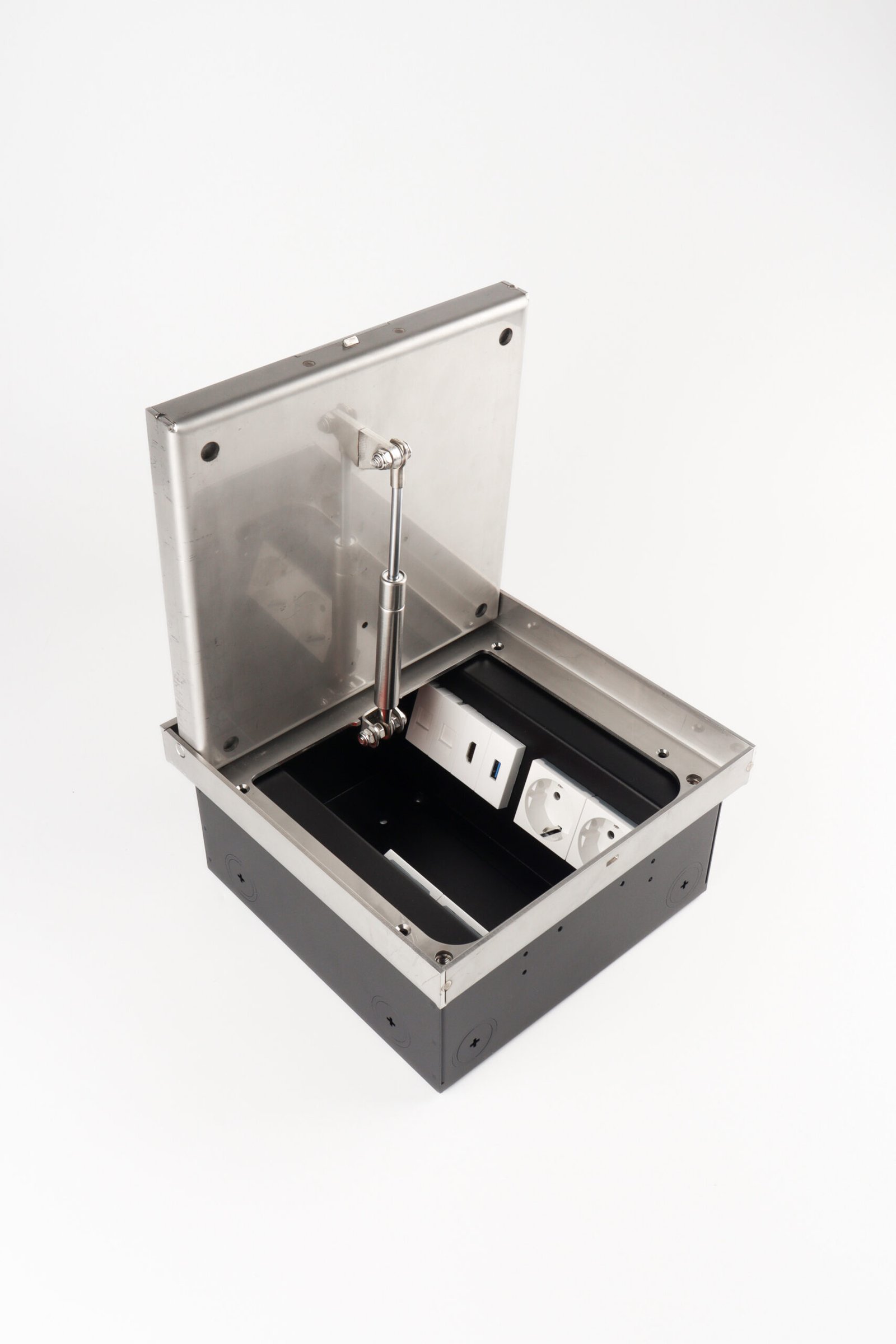

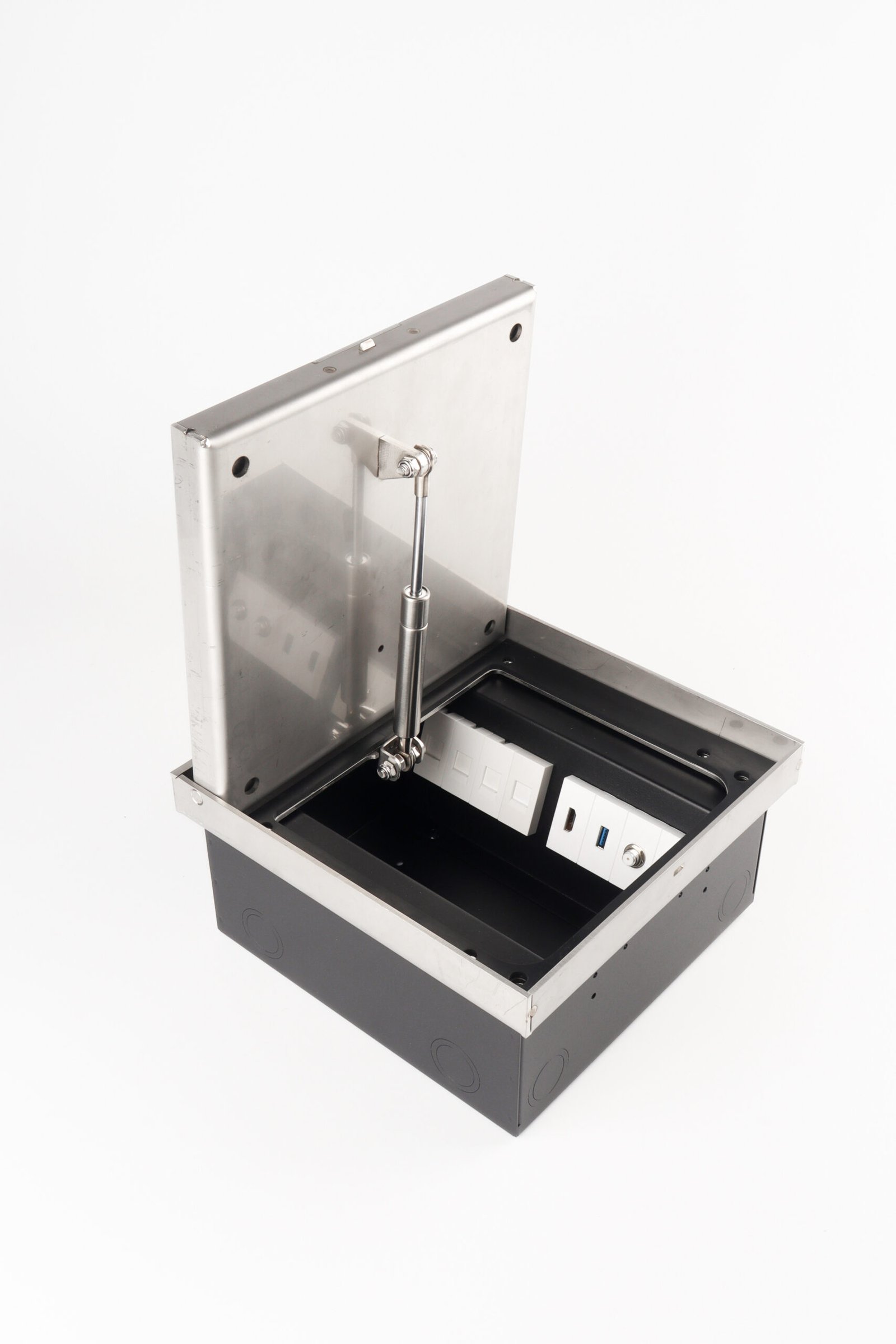

The height adjustable heavy duty floor box can be mounted in a minimum installation depth of l25 mm in screed floor as well as in raised and cavity floors, 3mm stainless steel provides the necessary stability , heavy traffic load is not a problem. lid can be soft closing or stay-open at any angle ensures the safety.
HDTR240-W
Waterproof/Heavy Duty/Height Adjustable/Robust Load Frame
Material: Stainless steel 304/ Gal steel

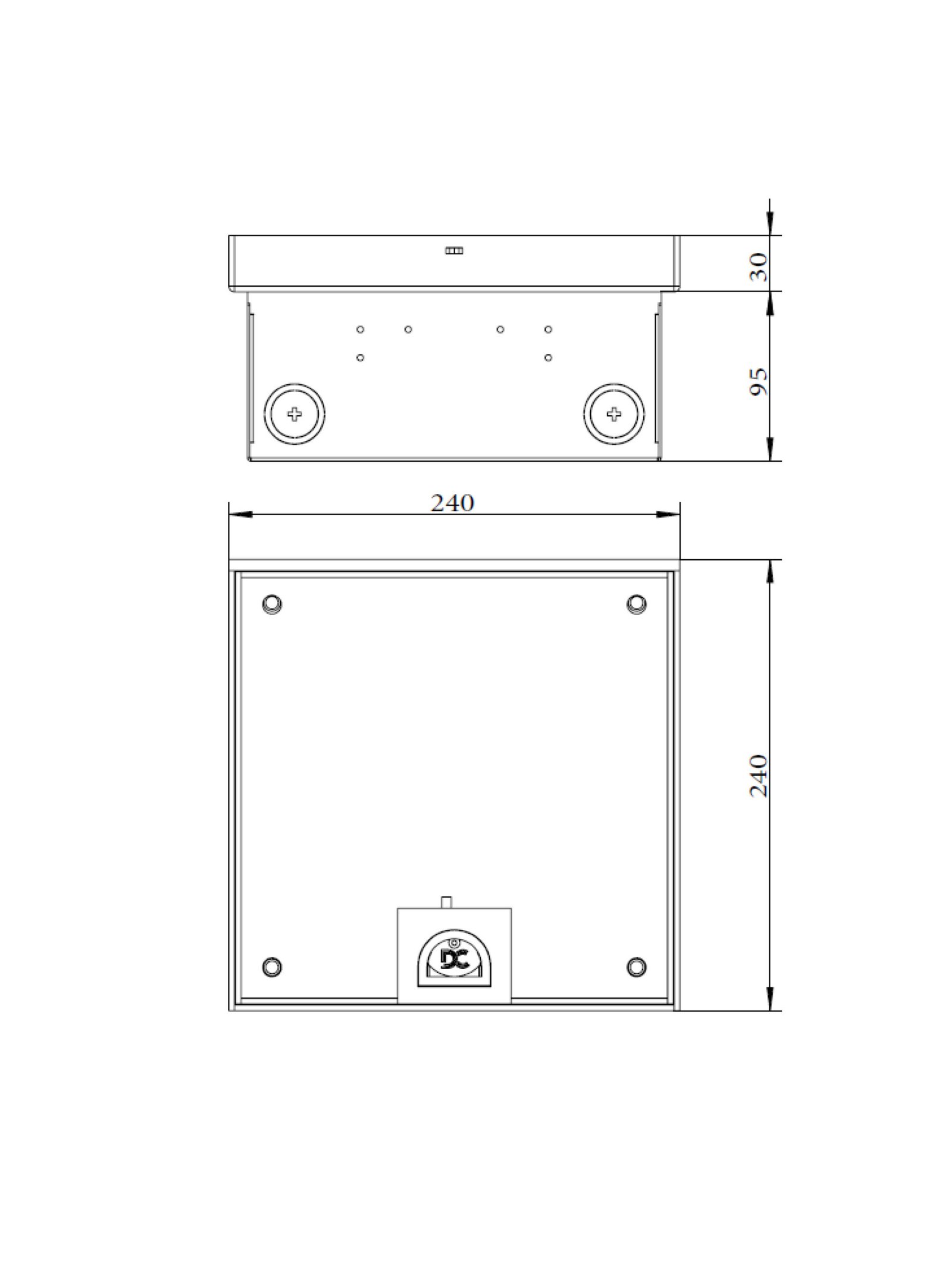

Dimensions: 240×240 x125mm(Lx Wx H)
Module: 8x 45 Module all standards
Lid Recess: 20mm
Leveling : Height adjustable 40mm
Instal Depth: 125mm min
Floor Type: Raised or screed floor with Dry care
Download Area
Data Sheet
