UB220

U Slot/Edge Support Flanges



Material:            Stainless steel 304

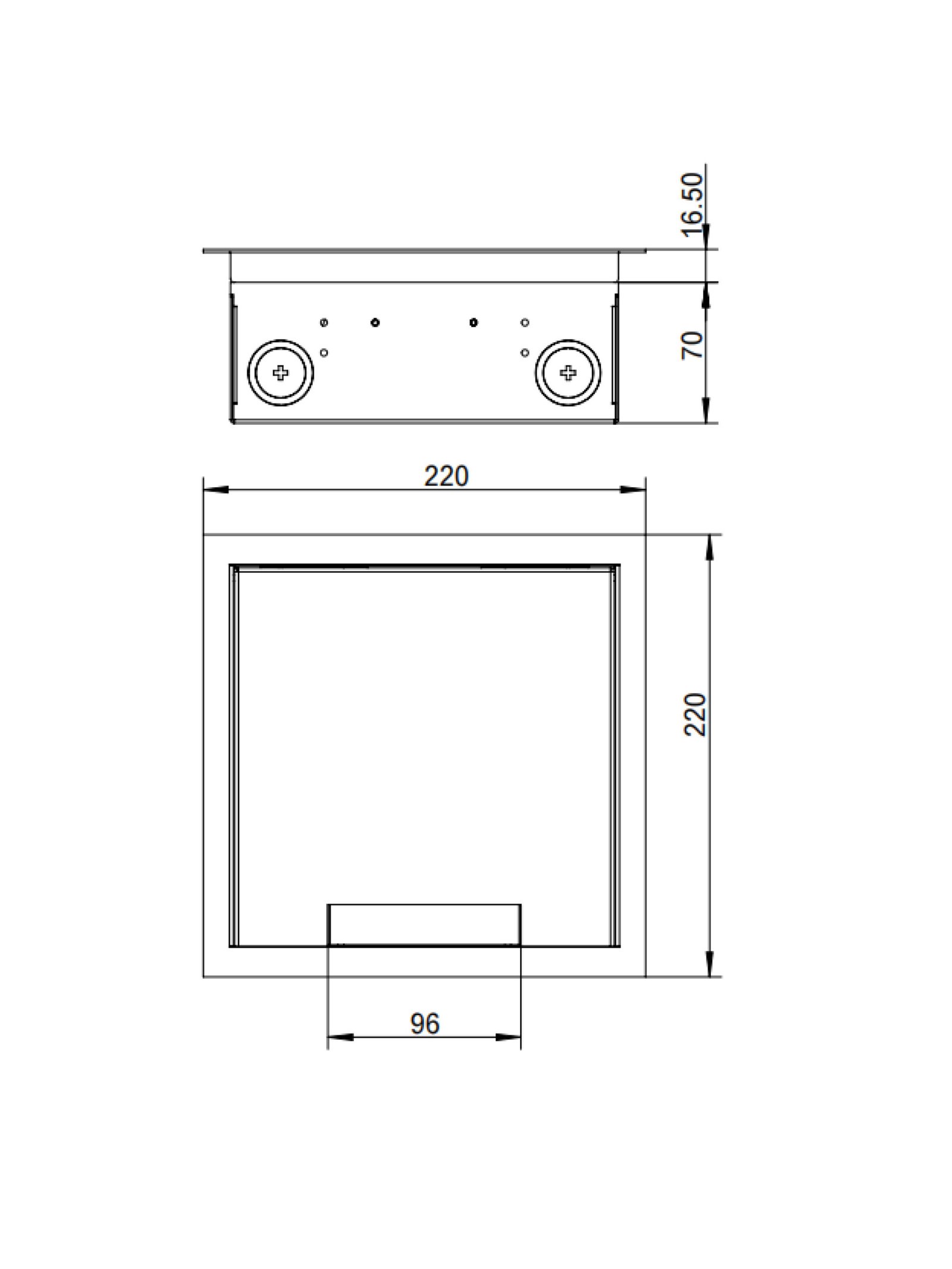

Dimensions:     220*120*86.5mm(L*W*H)

Module:             6x 45 Module all standards

Lid Recess:       SS flush surface

Instal Depth:     87mm min

Floor type:        Raised or Screed floor dry care

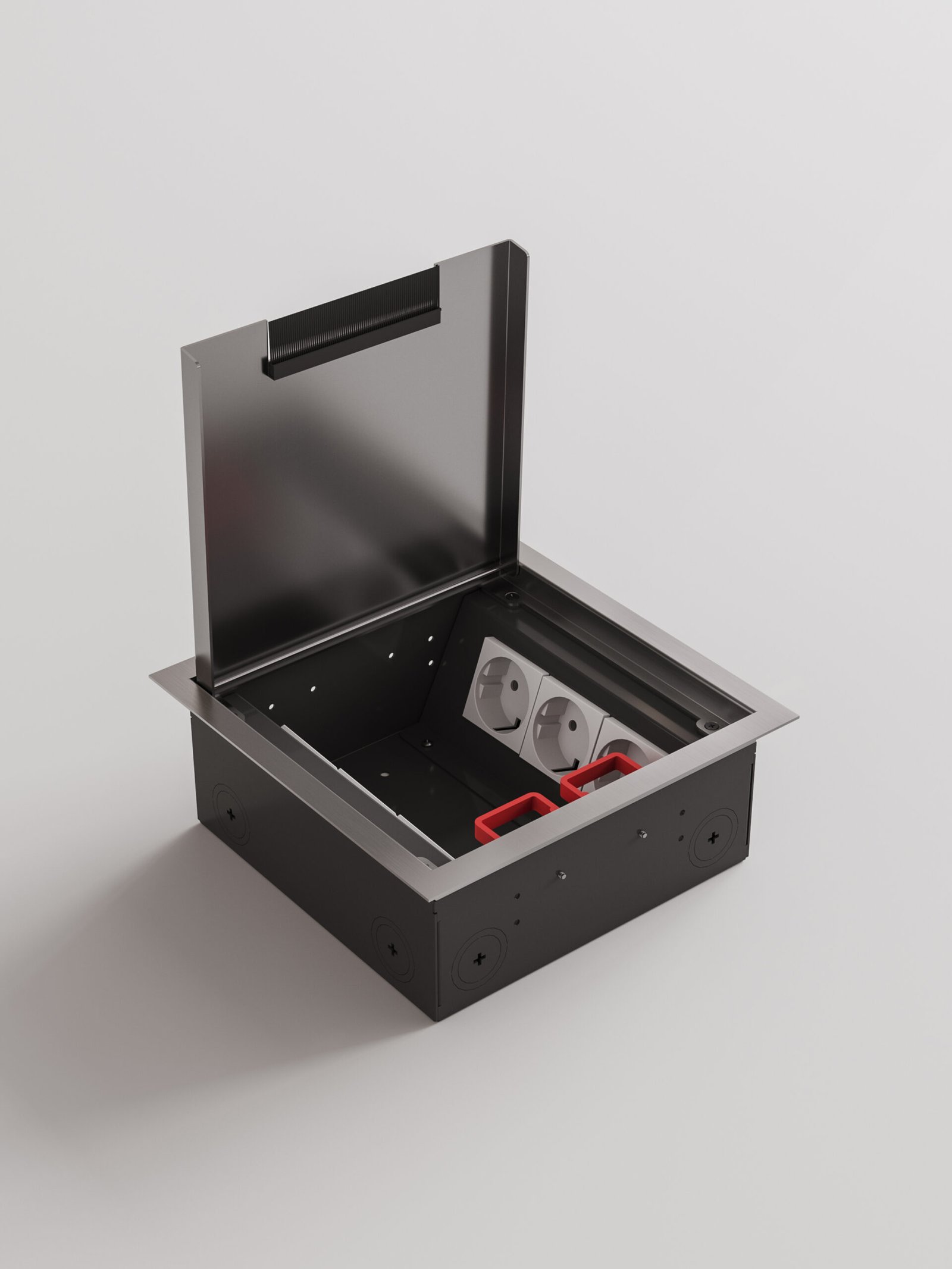

This floor box features a U-shaped cable outlet and a lid designed to sit completely flush with the floor surface. The lid is made of durable stainless steel, while the box body is constructed from powder-coated galvanized steel for excellent strength and corrosion resistance. Specially designed for raised flooring systems, it comes with edge support flanges that ensure secure installation and stability. With its sleek appearance and reliable performance, this floor box is an ideal choice for modern offices, data centers, and commercial spaces requiring discreet yet functional power and data access.


Download Area
Data Sheet
